OMPONENTS

We help buyers get around long component lead times. Eighteen product lines are defined; none has been released yet, so every line below is marked Draft until it goes on sale.

≡

FFF direct equivalents. Drop into your existing board, panel or assembly in place of a known brand's part — no redesign or software change.

⚒

Made-to-order parts. Built by small local shops to your drawing or specification.

⌬

Firmware ports. Your firmware moved to an in-stock microcontroller.

✎

Specification & sourcing. For higher-cost items: a better spec or a second qualified maker.

PRODUCT LINES

Open a line for its industrial specification — the points we match or build to.

01High-current power inductorsMade-to-order part

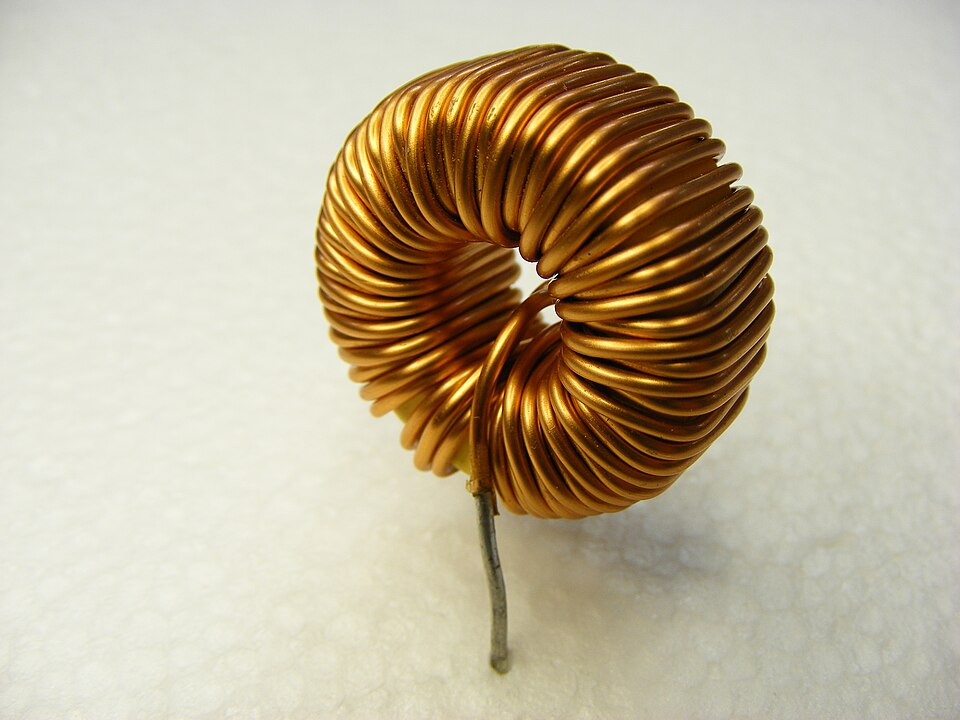

Toroidal power inductor wound with copper wire — Peripitus, CC BY-SA 4.0

Low-turn inductors built from a formed copper strap on a catalog gapped ferrite core, for 12 V-to-1 V converter phases.

Inductance: about 100–220 nH
Current: 40–60 A
Construction: Formed copper strap, catalog gapped ferrite core
Application: 12 V-to-1 V converter phases
Footprint: Can match an existing catalog part
Cost tier: Core
Status: Draft

02Custom copper busbarsMade-to-order part

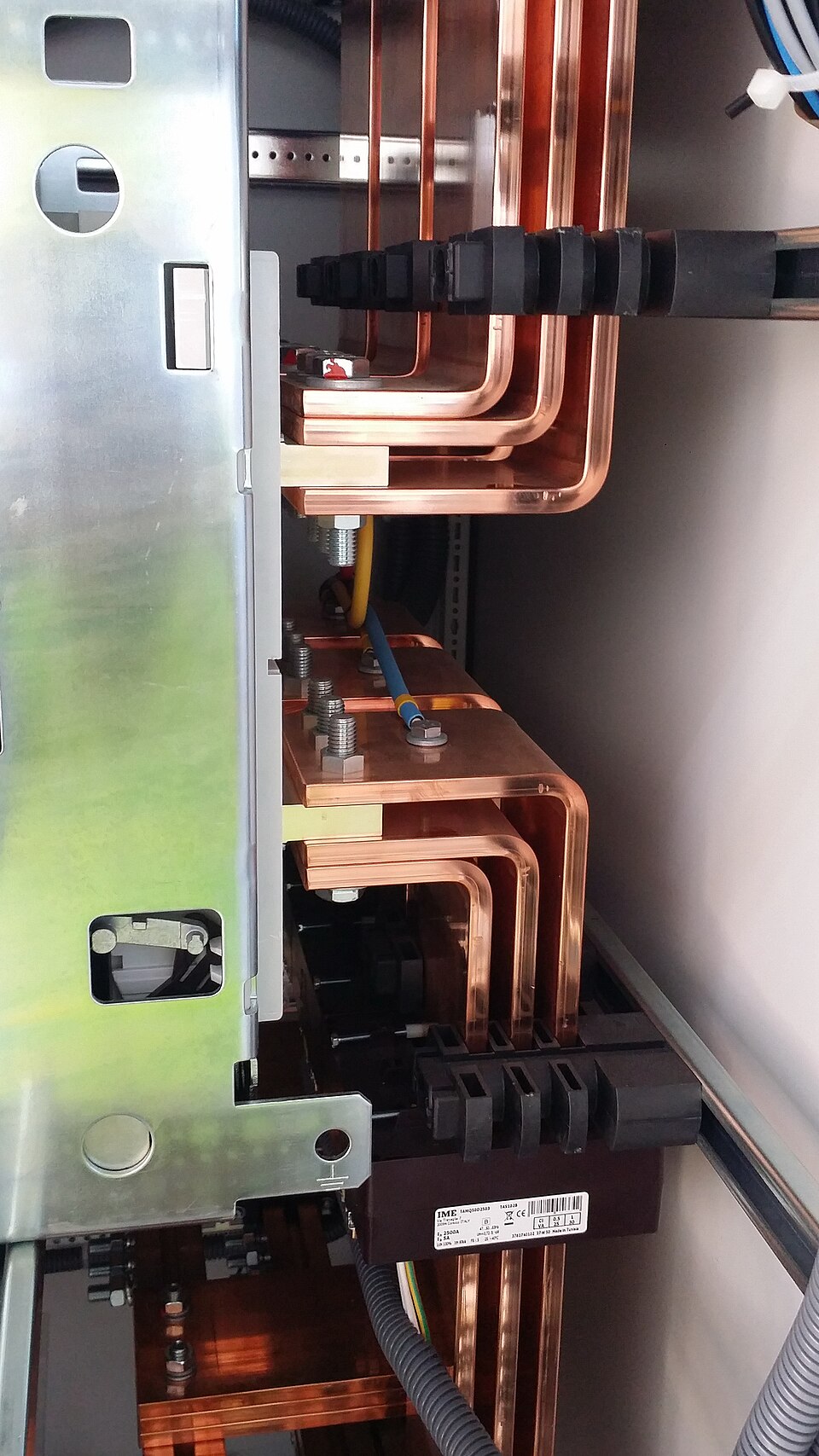

Copper busbars in a motor control panel — ToT89, CC BY-SA 4.0

Flat, bent and bolted copper bars for 48–60 V DC power shelves, racks and battery packs.

Bus voltage: 48–60 V DC
Processing: Cut, bent, plated and insulated to your drawing
Use: Power shelves, racks, battery packs
Input: Your drawing
Cost tier: Higher-cost
Status: Draft

03High-capacitance MLCCsFFF direct equivalent

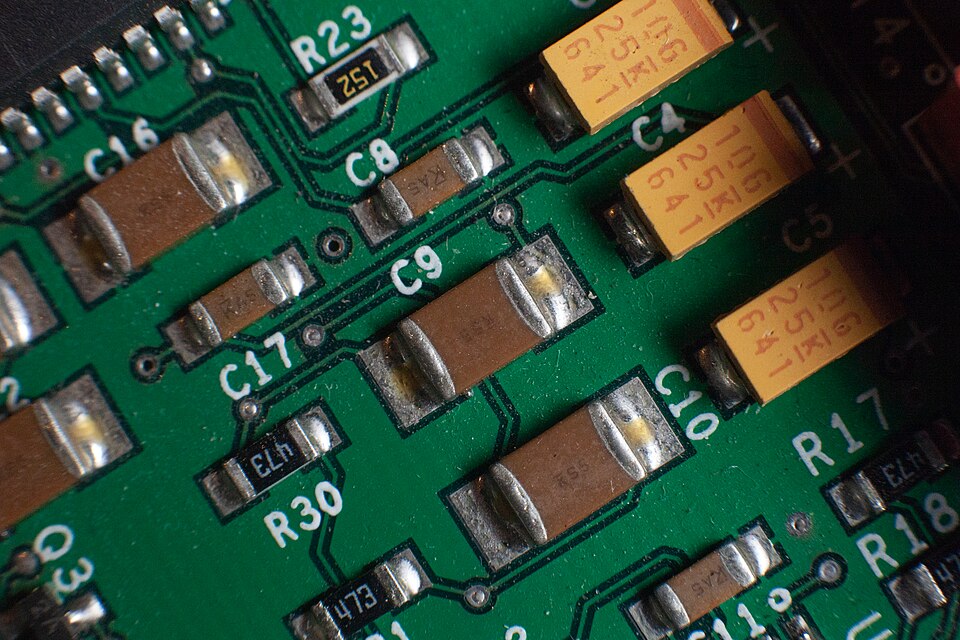

Ceramic capacitors mounted on a circuit board — Giovanna 27, CC BY 4.0

Direct equivalents for scarce 22–100 µF ceramic capacitors from the major makers.

Capacitance: 22–100 µF, matched at your operating voltage
Case size: 1206 / 1210, matched on height
Matched on: Voltage rating, dielectric, case size, height
Cost tier: Core
Status: Draft

04Discrete MOSFETs and diodesFFF direct equivalent

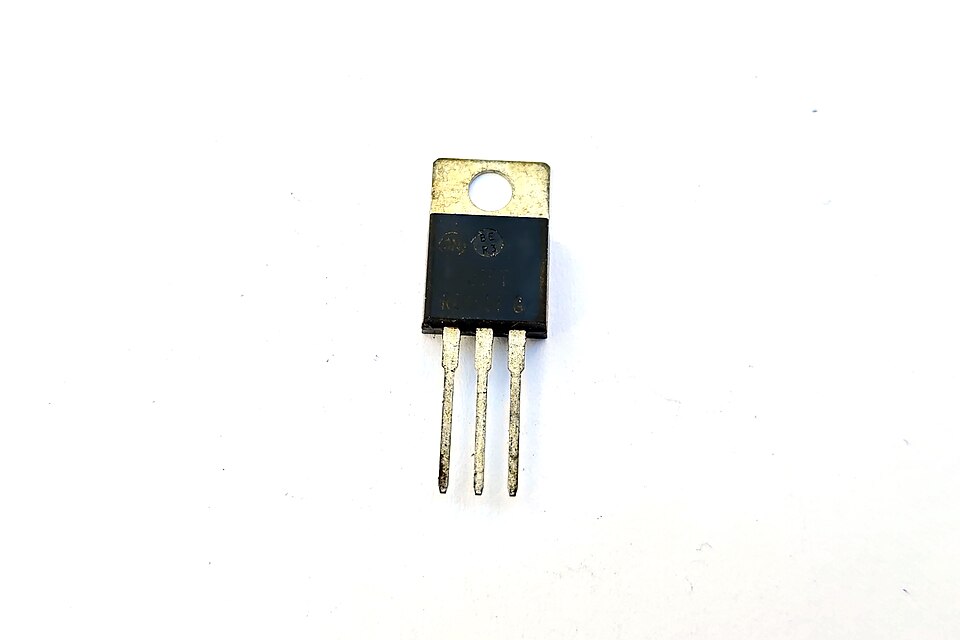

Power MOSFET in a TO-220 package — Suyash Dwivedi, CC BY-SA 4.0

Same-package equivalents for discrete power MOSFETs and diodes.

Package: Same as original
Matched on: Voltage, resistance at your gate drive and temperature, gate charge, recovery, thermal rating
Cost tier: Core
Status: Draft

05Microcontroller alternativesFirmware port

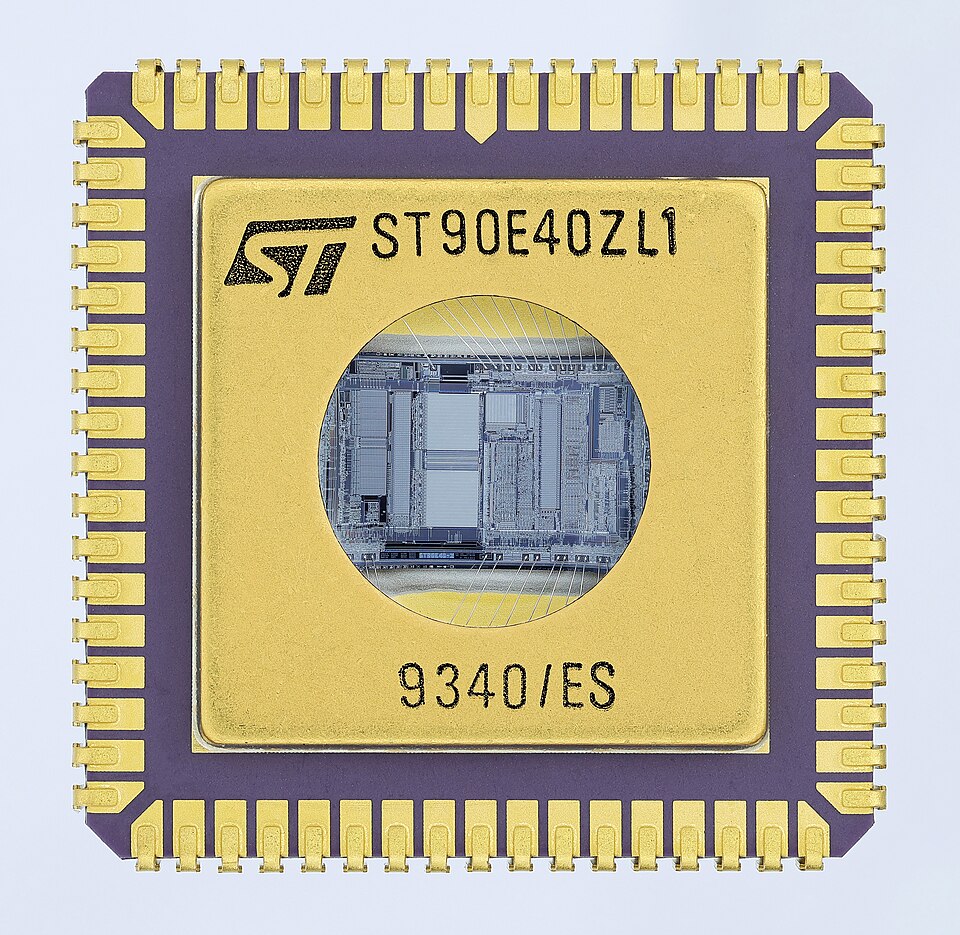

Microcontroller in a ceramic package — Mister rf, CC BY-SA 4.0

Your firmware moved from a long-lead microcontroller to an in-stock one.

Scope: Port, not a drop-in swap
Hardware: Pin-compatible alternatives where they exist
Validation: Your full test suite run on the new part
Cost tier: Core
Status: Draft

06Custom harnesses and M12/M8 cordsetsMade-to-order part

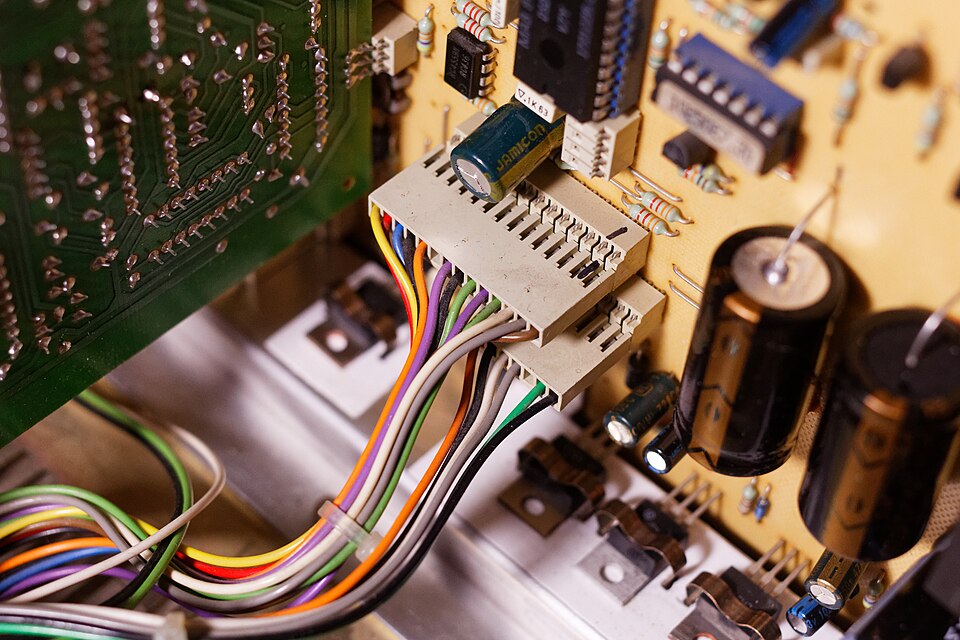

Wire harness inside electronic equipment — Retired electrician, CC0

Low-voltage wire harnesses and sensor cordsets built to your specification.

Build: Each connector maker's own terminals and crimp specs
Tests, every build: Continuity, insulation, pull
Connectors: M12 / M8 cordsets and custom harnesses
Cost tier: Core
Status: Draft

07Custom heat sinksMade-to-order part

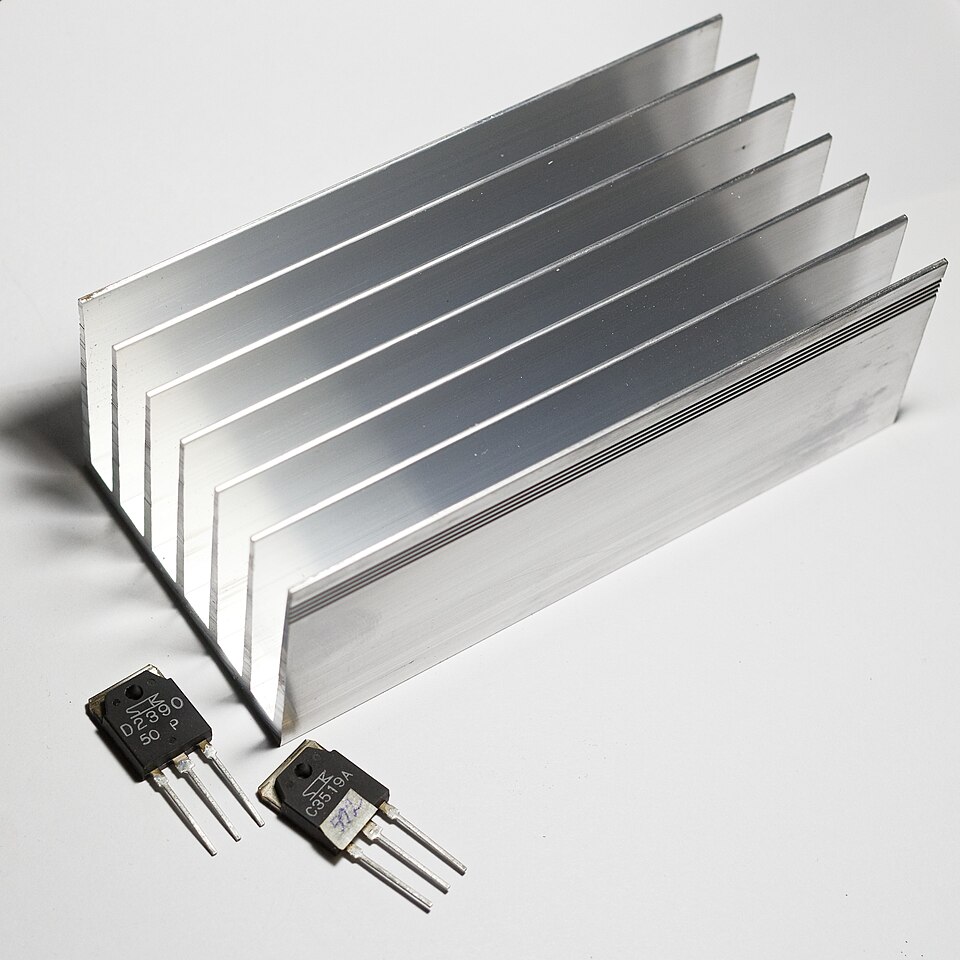

Extruded aluminium heat sink with power transistors — Retired electrician, CC0

Aluminium heat sinks from stock extrusions or machined plate, sized to your thermal budget.

Material: Aluminium; stock extrusion or machined plate
Acceptance: Measured thermal resistance at your airflow
Cost tier: Core to higher-cost
Status: Draft

08High-current busbar clipsMade-to-order part

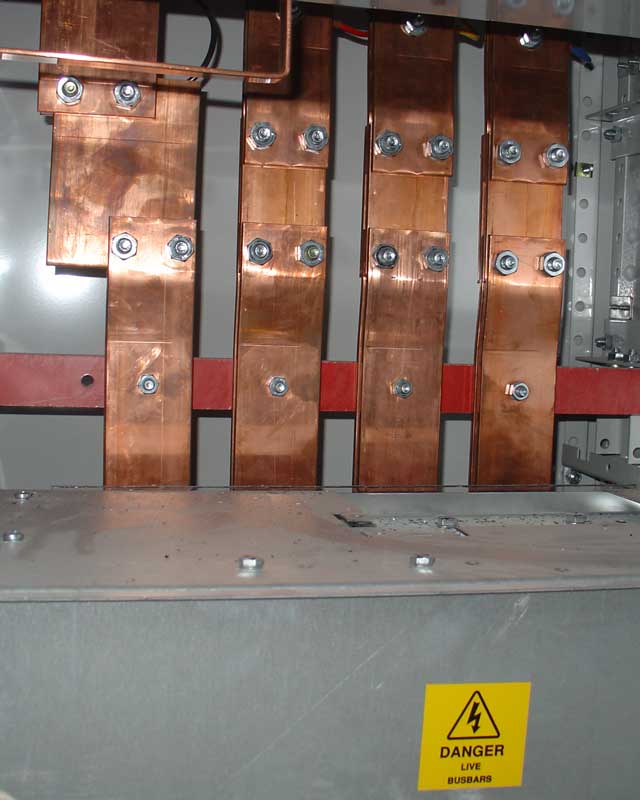

Bolted copper busbars in a switchboard — Ali@gwc.org.uk, CC BY-SA 3.0

Second-source clips to fit a specific rack or shelf busbar, in prototype quantities.

Role: Second source for a specific rack or shelf busbar
Quantity: Prototype quantities
Gate: Offered only after a patent check on the original part
Cost tier: Core
Status: Draft; patent check pending

09Discrete IGBTsFFF direct equivalent

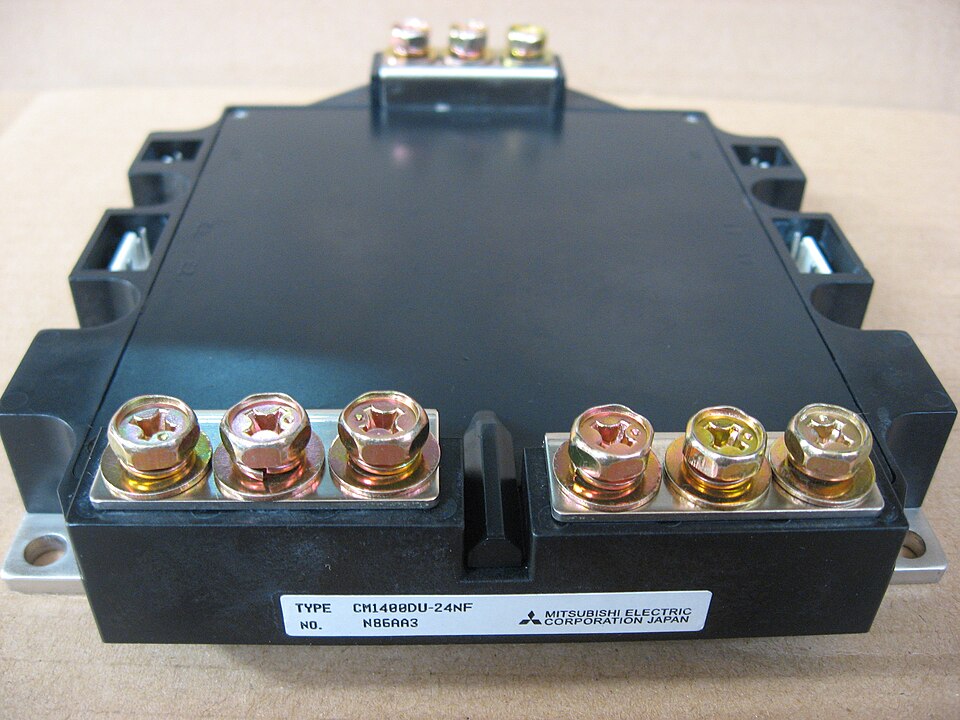

IGBT power module — Sthdhk, CC BY-SA 4.0

Same-package equivalents for discrete IGBTs.

Package: Same as original
Matched on: Voltage, saturation voltage, switching energy, short-circuit rating, co-packed diode
Cost tier: Core
Status: Draft

10Optocouplers and isolatorsFFF direct equivalent

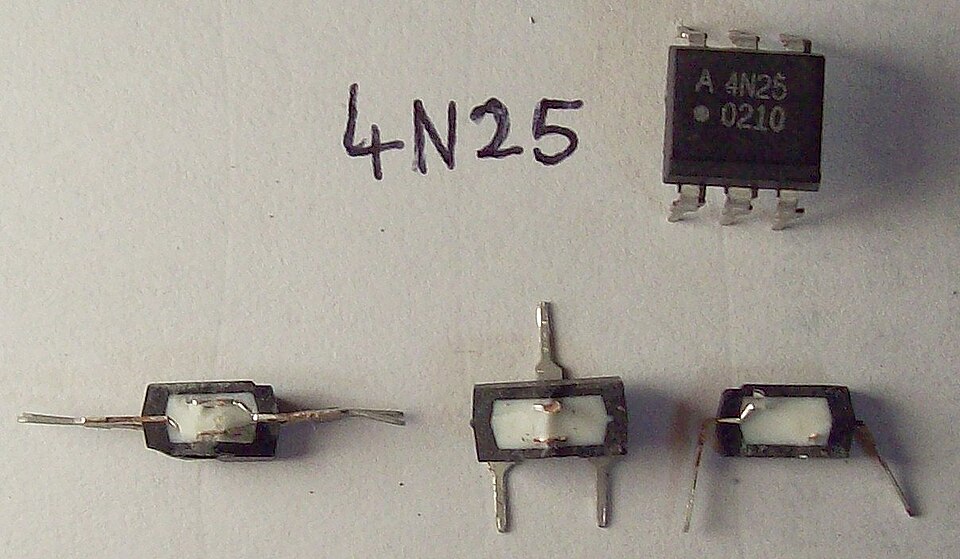

4N25 optocoupler beside its internal parts — Stefan Riepl (Quark48), Public domain

Equivalents for widely used 817-class and 6N137-class types.

Classes: 817-class, 6N137-class
Matched on: Pinout, current-transfer ratio, isolation voltage, safety approvals
Cost tier: Core
Status: Draft

11DIN-rail terminal blocksFFF direct equivalent

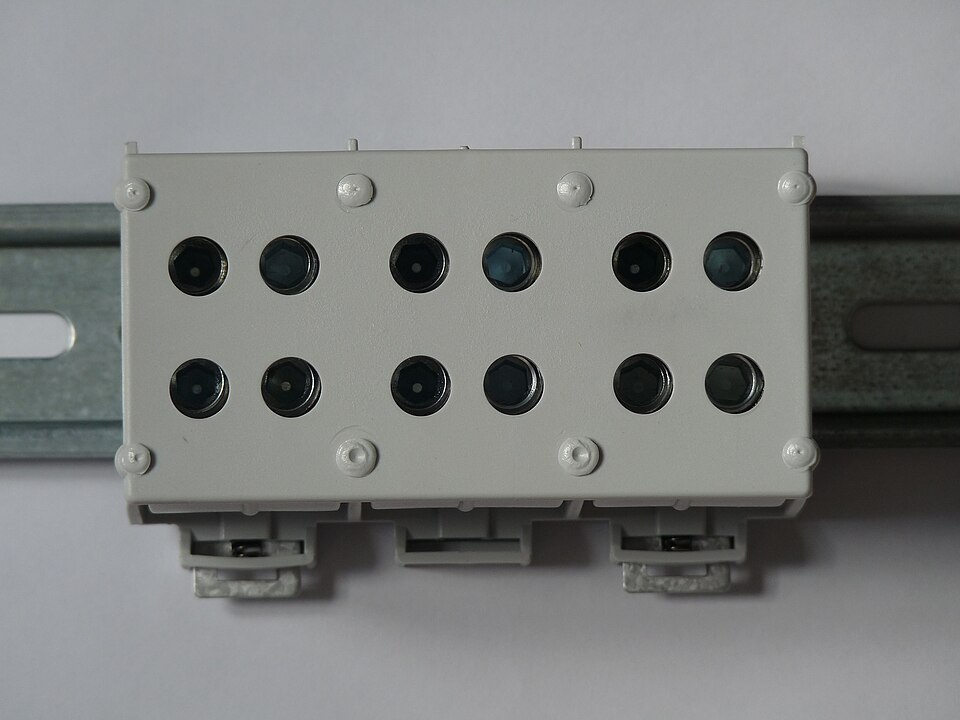

Terminal block mounted on a DIN rail — Dmitry G, CC BY-SA 3.0

Terminal block equivalents supplied by whole rail group so accessories stay compatible.

Matched on: Wire range, voltage and current rating, width, approvals
Supply unit: Whole rail group (jumpers, end plates, markers)
Cost tier: Core
Status: Draft; lead time to confirm

12Pin headers and socketsFFF direct equivalent

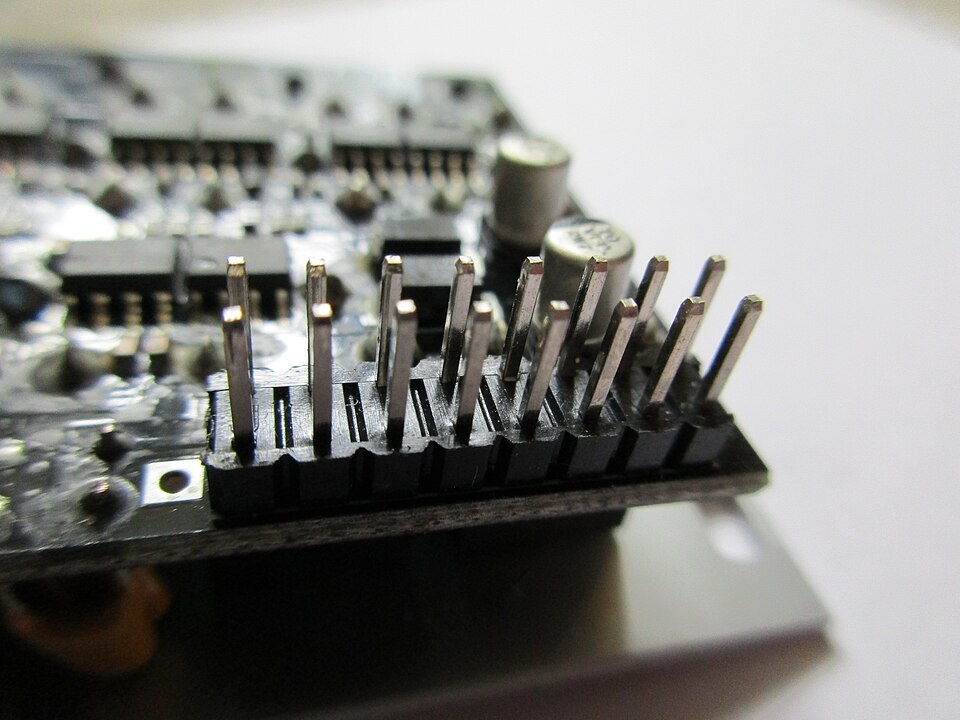

Pin header on a circuit board — Rob Kam, CC BY-SA 4.0

Header and socket equivalents matched on exact pitch.

Pitch: 2.54 mm or 2.00 mm
Matched on: Post size, plating, lengths
Cost tier: Core
Status: Draft; lead time to confirm

13Push-to-connect air fittingsFFF direct equivalent

Pneumatic fitting equivalents matched on exact tube size and thread.

Matched on: Exact tube size, thread standard, sealing method, pressure rating
Cost tier: Core
Status: Draft; lead time to confirm

14DIN-rail 24 V power suppliesFFF direct equivalent

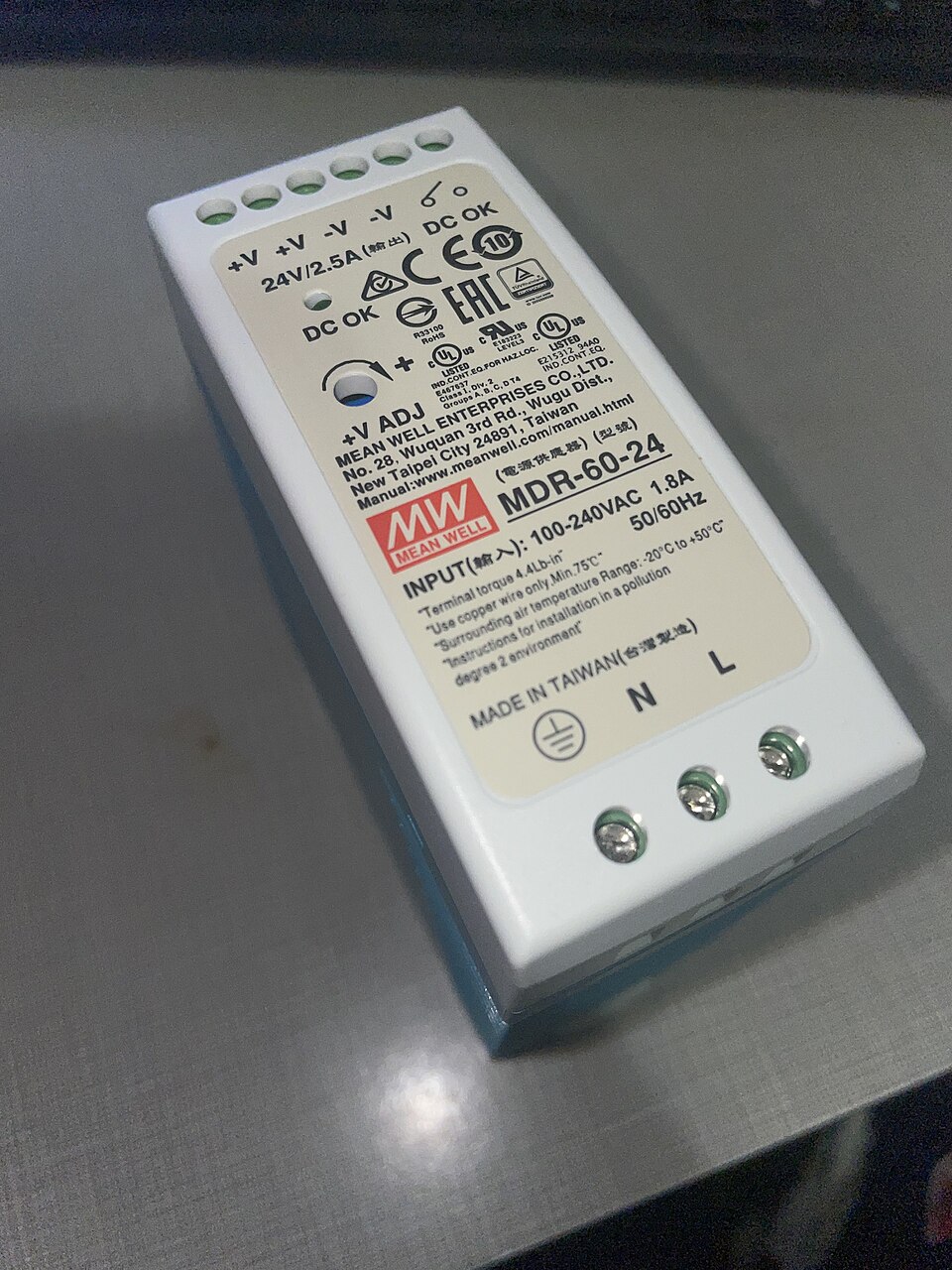

24 V DIN-rail power supply — Mithilrkadam, CC BY-SA 4.0

DIN-rail 24 V supply equivalents matched on output and protection behaviour.

Output: 24 V DC
Matched on: Output, derating curve, boost and overload behaviour, hold-up time, approvals
Cost tier: Higher-cost
Status: Draft

15ISO pneumatic cylindersFFF direct equivalent

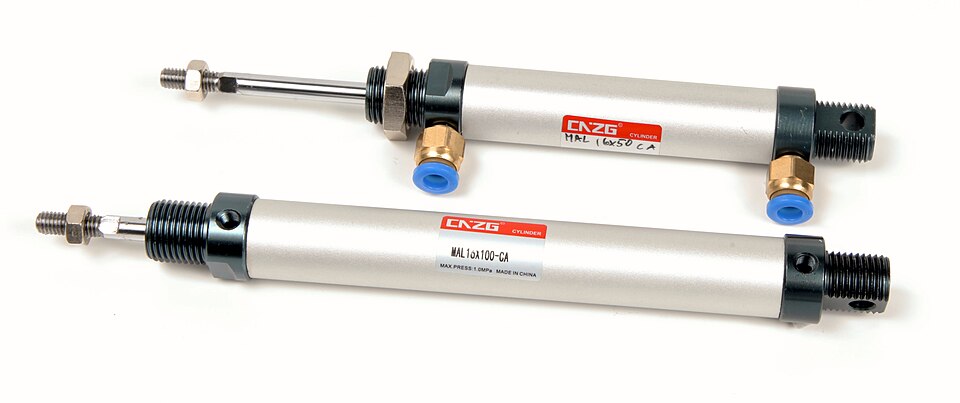

Two small pneumatic cylinders — Grummelbacke, CC BY-SA 4.0

Cylinder equivalents under ISO 15552 and ISO 6432.

Standards: ISO 15552, ISO 6432
Matched on: Bore, stroke, cushioning, sensor slot, ports
Cost tier: Higher-cost
Status: Draft

16Inductive proximity switchesFFF direct equivalent

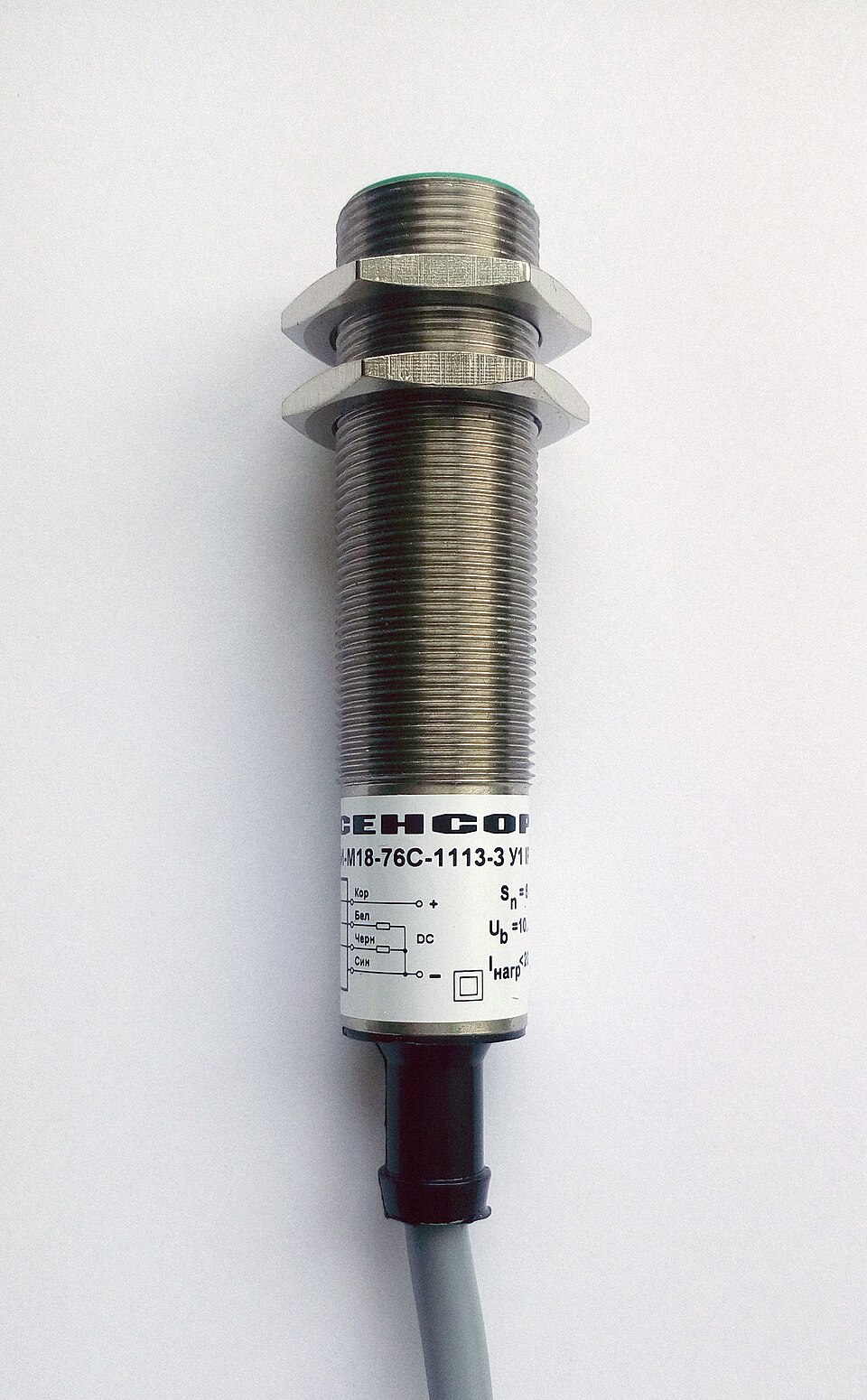

Cylindrical inductive proximity sensor — Ekbsensor, CC BY-SA 4.0

Proximity switch equivalents. Safety-function sensors are excluded.

Matched on: Thread, flush or non-flush mounting, sensing distance, output type, connection
Excluded: Safety-function sensors
Cost tier: Higher-cost
Status: Draft

17Heavy-copper and high-layer PCBsSpecification package

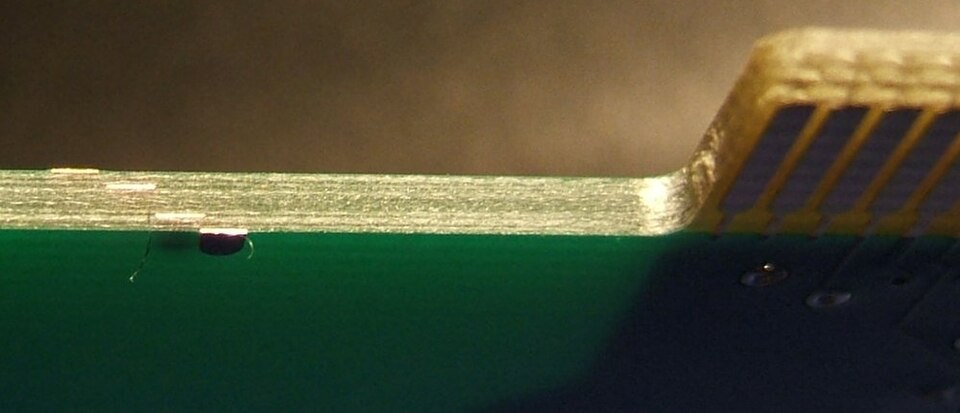

Cross-section edge of a multilayer circuit board — Sieobserver Christoph Kappel, CC BY-SA 3.0

A complete specification package any qualified fabricator can quote.

Deliverable: Full fabrication specification package
Evidence: Test evidence to request with every lot
Cost tier: Higher-cost
Status: Draft

18Busbar trunking systemsSourcing service

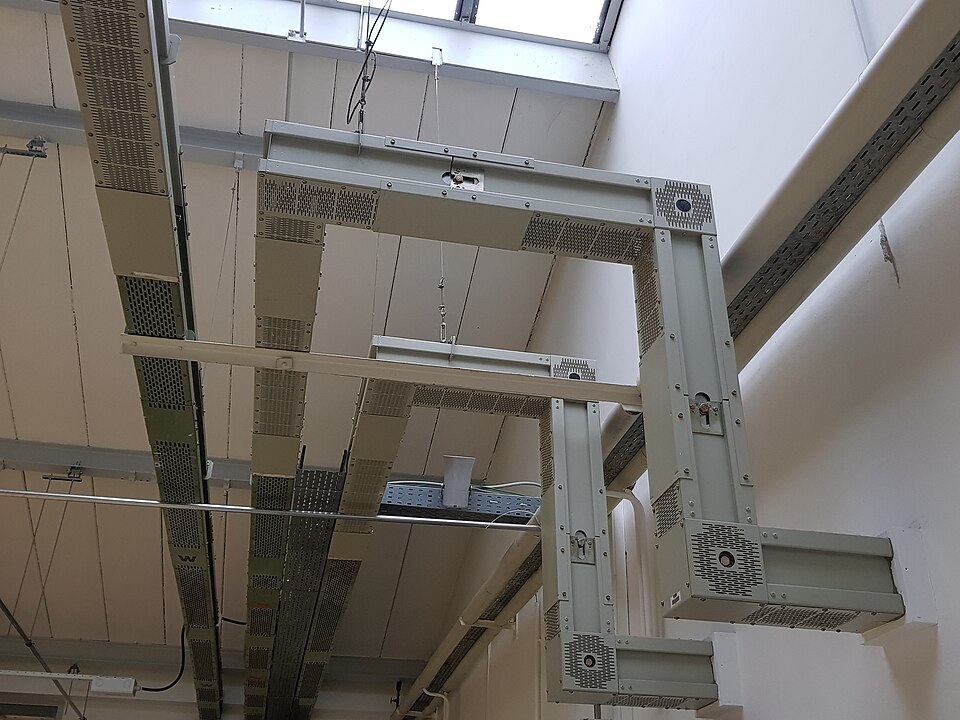

Busbar trunking system installed overhead — Blacky-CS, CC BY-SA 4.0

A performance specification so several makers can bid, with one maker supplying each complete run.

Deliverable: Performance specification for multi-maker bidding
Supply: One maker per complete run
Cost tier: Higher-cost
Status: Draft

HOW TO ORDER

Send a request with:

The part you can’t get (maker and part number) and its quoted lead time.
Your quantity, target date and delivery location.
Any approvals the part must carry (UL, CE, VDE, automotive).
For made-to-order parts: your drawing, or the specification to build from.

We reply with a candidate, a datasheet comparison against your original, and a quote with a lead time.

OUR COMMITMENTS

No false equivalence claims. Listed as an FFF direct equivalent only when form, fit and function match the original’s datasheet on the points above.

Data with every equivalent. A datasheet comparison and test results you can add to your approved vendor list.

Traceability. Parts sourced through traceable channels only.

Approvals stay yours to confirm. We don’t claim UL, CE or other listings we don’t hold.

Brand names are trademarks of their owners and are used only to identify the part being matched.
